Single input remote monitoring applications
Industrial IoT Made Simple

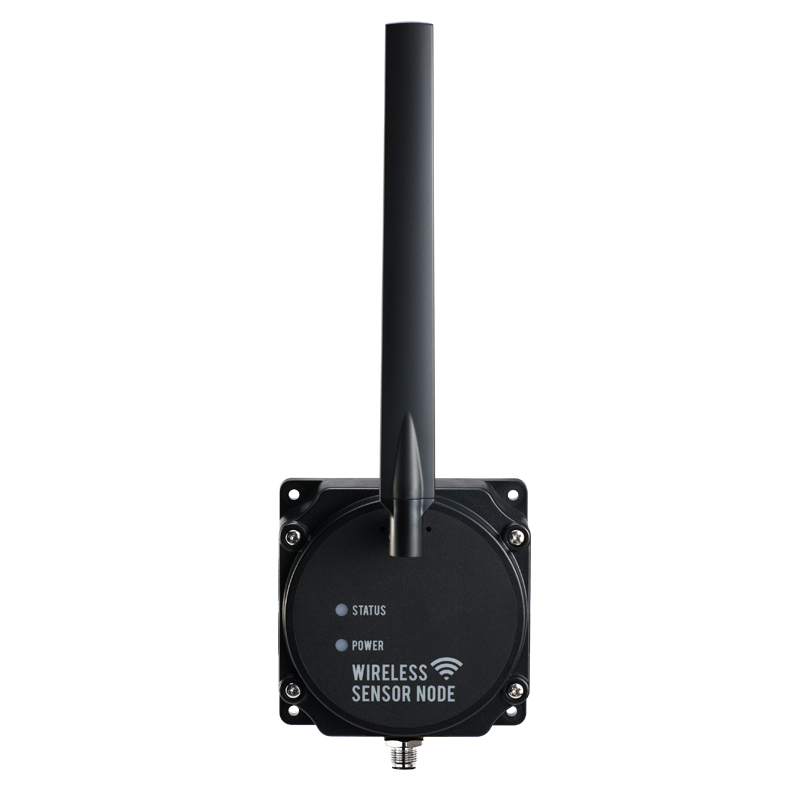

The WTC1 series comprising of the WTC1N model and MTC1C products are compact NB-IoT devices that bring remote equipment data directly to you through modern cloud-based monitoring systems.
The WTC1 series is Ideal for: Generator monitoring, cathodic protection rectifier monitoring, RS485 bus monitoring, industrial sensor networks, and remote PLC connectivity.
Key Features
RS-485 Modbus RTU
Native Modbus RTU support with configurable baud rates (1200-230400 bps). Connect directly to PLCs, energy meters, flow sensors, and industrial controllers without protocol conversion.
NB-IoT Connectivity
Reliable cellular connectivity on Australian networks (Telstra, Optus), Our WTC1N operates on NBIoT band and MTC1C Utilises CAT1 cellular.
Analog & Digital I/O
One analog/digital input (0-10V, 0-20mA, 4-20mA) and one digital output for direct sensor connection and control. Perfect for adding simple sensors alongside Modbus devices.
IP68 Waterproof
Fully sealed outdoor-rated enclosure withstands harsh environments. Deploy in pump stations, outdoor enclosures, or underground vaults with confidence.
Industrial Power Range
12-36V DC input with 5V/200mA output for powering external sensors. Wide voltage tolerance handles noisy industrial power supplies and vehicle batteries.
Technical Specifications
| Specification | WTC1N Details | WTC1C Details |
|---|---|---|
| Product Type | Outdoor | Outdoor |
| Cellular Protocol | NB-IoT (LTE Cat NB2 3GPP Release 14 | LTE Cat 1 bis (3GPP Rel-14 FDD) |
| Internet Protocols | TCP / UDP / MQTT(S) | |
| Operating LTE Bands | Band 1 / Band 3 / Band 5 / Band 8 / Band 20 / Band 28 | Band 1 / Band 3 / Band 5 / Band 7 / Band 8 / Band 20 / Band 28 |
| Sensitivity | Maximum -116dBm | Maximum -116dBm |
| Transmit RF Power | Maximum 23 dBm (Class 3) | Maximum 23dBm ± 2dB (Class 3) |
| Cellular Data Rate | NB2, Uplink: 159kbps / Downlink: 127kbps | E-FDD, UPlink: 5 Mbps / Downlink: 10 Mbps |
| RS-485 Interface | 1 x RS-485 port | |
| RS-485 Protocol | Modbus RTU (primary), Transparent mode | |
| RS-485 Baud Rate | 1200 / 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 / 230400 bp | |
| Analog Input | 0-10V / 0-20mA / 4-20mA / ADC (0-10V) | |
| Digital Input | High/Low signal detection | |
| Digital Output | PWM / Latch mode | |
| Operating Temperature | -40°C to +85°C | |
| Waterproof Rating | IP68 | |
| Input Power Supply | 12-36V DC / 1A | |
| Output Power Supply | 10V DC / 40mA (for external sensors) | |
| Power Consumption: | 12V 12mA @receive / 12V 200mA @transmit, 12V ≤ 0.2mA @standby | |
| Dimensions | 10 x 10 x 4.8 cm (excluding antenna and connectors) | |
| Weight | 195 grams | |
Ready to Deploy Industrial IoT Monitoring?
Contact Datacell today to discuss how the WTC1 series can solve your remote monitoring challenges. Our team has extensive experience deploying IoT solutions for generators, analogue data collection, cathodic protection and critical infrastructure to some of our works and capabilities
Request a Quote Call UsWhy Choose Datacell products?
As Australia's leading industrial IoT monitoring specialists, Datacell brings decades of experience deploying and supporting remote monitoring solutions. We provide:
✓ Expert Technical Support
Our experienced team provides configuration, installation guidance, and ongoing technical support throughout the lifecycle of your deployment.
✓ Australian Stock & Support
Local inventory means faster delivery and local support means we understand Australian network conditions and requirements.
