NES Cathodic Protection Rectifiers
We are the exclusive authorised distributor of NES Nová Dubnica products in Australia. NES is a European leader in power electronics, manufacturing high-quality cathodic protection rectifiers, impressed current power supplies, and switching drainage units from their facility in Slovakia since 1992.
Through our exclusive arrangement with NES, Australian asset owners, contractors, and corrosion engineers can now access the full NES product range with local support, engineering expertise, and integration with Datacell's DataScape monitoring platform.
Whether you are protecting buried pipelines, storage tanks, marine structures, or reinforced concrete, NES equipment is engineered to meet the demands of challenging Australian environments.
Product Range

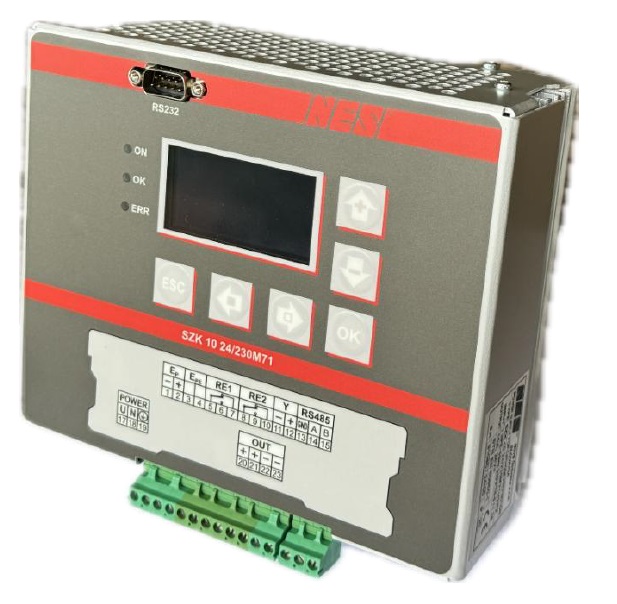

SZK Series — Air-Cooled CP Rectifiers
Switchmode impressed current cathodic protection rectifiers in a robust steel enclosure. Available in a wide range of output voltages and currents to suit pipeline, tank, and structural protection applications.
SZKO Series — Oil-Cooled CP Rectifiers
Oil-cooled cathodic protection rectifiers for high-duty-cycle installations and environments requiring superior thermal performance and reliability.
Switching Drainage Units (SDU)
Automatic and manual switching drainage units for stray current mitigation on DC traction networks. Fully compatible with VEC electrolysis committee requirements for the Victorian rail network.
AC/DC Switching Power Supplies
High-efficiency IGBT-based switching power supplies with output ripple optimised for cathodic protection and galvanic plant applications. Efficiency up to 92%.
Remote Monitoring Integration
All NES rectifiers can be integrated with Datacell's DataScape platform via Modbus RTU/TCP, enabling 24/7 remote monitoring, alarming, and trending from a single dashboard.
Custom & Special Power Supplies
NES designs and manufactures custom power supplies for special applications including electroplating, DC/DC converters, battery chargers, and DC UPS systems.
Custom EngineeringKey Product Features
- Switchmode IGBT technology — up to 92% efficiency
- Very low output voltage ripple (< 1% typical)
- Constant current, constant voltage, and constant potential control modes
- Automatic and manual output adjustment
- Modbus RTU / TCP communications
- Integrated current interrupter capability
- Wide input voltage range — suitable for Australian 400 V / 200 V supply
- IP55 and IP65 enclosure options
- Air-cooled and oil-cooled variants
- Surge and lightning protection
- RS-485 remote interface as standard
- CE marked — compliant with European and Australian standards
- AS 2832 compatible system design support
- DC traction stray current drainage capability
Why Source NES Products Through Aegis Sentinel?
- Exclusive Australian distributor
- Backed by Aegis Sentinel's engineering team, with deep cathodic protection expertise
- Seamless integration with the DataScape remote monitoring platform
- Local commissioning and technical support across Victoria and nationally
- Fast response — stock of common models and spare parts held in Melbourne
- Compact design makes then a great replacement part utilising existing cabinet
- Integrated relay for instant off surveys
Ready to discuss your cathodic protection power supply requirements?
Contact the Datacell team to request a quote, technical datasheet, or to arrange a demonstration.
